self charging electric car – Complete Wireless Charging System for Gen 1 Chevrolet Volt

Everything you need for effortless, fast wireless charging for your Chevy Volt

 Demonstrated innovation helps you get more from your 1st Generation Volt


Plugless has given 850,000+ charging hours to regular EV proprietors over the USA and Canada. Make existence with your Volt considerably more helpful and dependable — and you’re charging framework as savvy as your EV.

Responsibility to Satisfaction



3-year guarantee on all Plugless Chevrolet Volt Charging Stations

45-day Any-Reason Returns, including return shipping. We know you’ll adore Plugless, so we’re glad to go out on a limb

More Miles Without Gas

No connecting to, no forgetting

Programmed, proficient remote charging each time you stop

Charges Volt EV battery from exhaust in 3-4 hours

Quick 3.3kW Level 2 remote electric vehicle charging framework

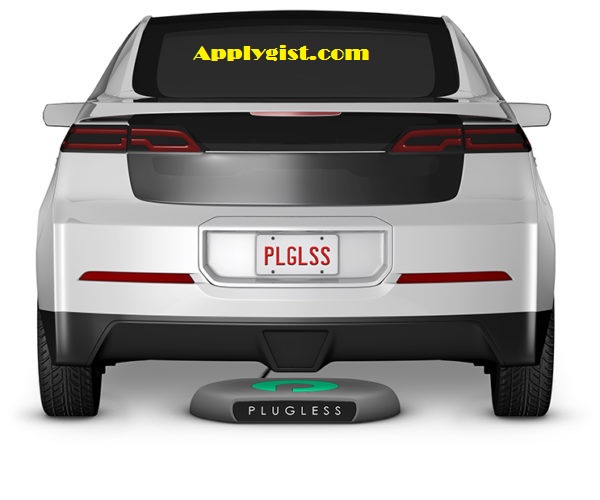

Complete Wireless Charging System for Gen 1 Chevrolet Volt

Natural to Use

Natural stopping direction makes charging as simple as stopping your auto

Doesn’t transform anything about your capacity to connect to

Works without changing Volt frameworks or programming — you’ll forget it’s there

Simple to Install

Requires devoted 30Amp circuit

Accompanies NEMA 6-30P fitting (indoor utilize just), or you can decide to hardwire into your circuit (required for open air utilize) (take in more about establishment)

Vehicle Adapter introduced by nearby Chevrolet merchants and confirmed professionals over the USA and Canada

Worked to Last

Rough all-climate materials



Materials evaluated for 8+ year indoor or open air utilize

Performs well crosswise over wide temperature go: 0° to 122°F (–18° to 50°C)

See Technical Specifications

Still have Questions? Get in touch with us.

Need to charge a moment EV or include another charging area? See additional items and adornments




TECH SPECS




The Plugless EV Charging System efficiently and safely charges your EV using our proprietary inductive power transfer technology. The Plugless System includes three components: the Vehicle Adapter, the Parking Pad, and the Control Panel. Charging begins automatically every time you park over the system — no dirty cords to untangle and no chance of forgetting to charge!

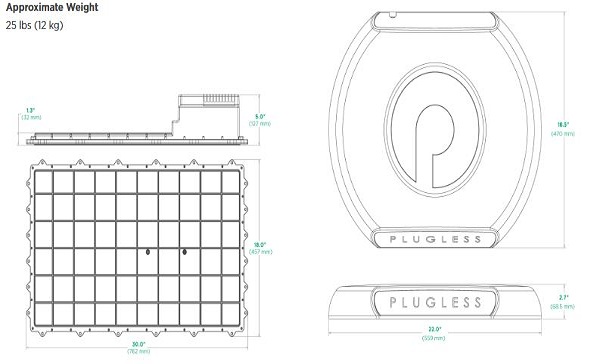

System Components
Vehicle Adapter
Professionally installed underneath the vehicle and custom designed for each EV model
Dimensions (H × W × D)
18.25 in (464 mm) × 30 in (762 mm) × 5 in (127 mm)
Approximate Weight
25 lbs (12 kg)
Complete Wireless Charging System for Gen 1 Chevrolet Volt
Houses the transmitting portion of the system and is installed on the garage floor or parking space
Dimensions (H × W × D)
2.5 in (63.5 mm) × 22 in (559 mm) × 18.5 in (470 mm)
Supplies power to the Parking Pad and provides alignment guidance and charging status


Dimensions (H × W × D)
19.25 in (490 mm) × 9.75 in (239 mm) × 5 in (127 mm)
For mounting the Control Panel if a suitable wall is not available
Dimensions (H × W × D)
With Control Panel: 58.5 in (1,486 mm) × 12 in (305 mm) × 16 in (406 mm)
Charging Power Output
3.3 kW – 7.2kW continuous
Charging Input Voltage
208 – 240 VAC
Input Power Connections
Line 1, Line 2, and Earth connection
Recommended Service Panel Breaker
30A, 2P, breaker on dedicated circuit rated for continuous duty
50A, 2P breaker required for Tesla Model S
Parking Pad Maximum Wheel Load
Parking Pad Drive Over 1500 lbs (680 kg)
Nominal Gap
4 in (10 cm)
Ground Clearance
7 in (17.8 cm)
Vehicle Interface
J1772 EVSE emulation, interlocked to prevent the user attempting to charge the vehicle both inductively and conductively at the same time
Foreign Object Detection
Automatic detection and charging lockout if metallic materials on parking pad
Vehicle Guidance
Automatic alignment guidance and driver indication front/back and left/right
Manufacturing
Manufactured in the USA using recycled materials when possible
Standards
NEC 625 (NFPA 70), SAE J1772, UL2594, UL2231, CSA170.1
Enclosure Ratings
NEMA 3R (Control Panel); NEMA 4 (Parking Pad)
Operating Temperature
–22° to 122°F (–30° to 50°C)
