Are you Looking for a Good Car with Insurance- Then check out 2ND GENERATION PLUGLESS TECHNICAL SPECIFICATIONS

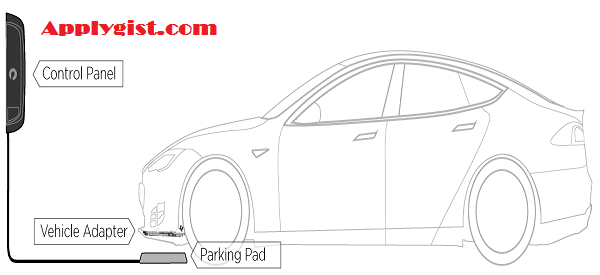

SYSTEM COMPONENTS
The Plugless EV Charging System efficiently and safely charges your EV using our proprietary inductive power transfer technology. The Plugless System includes three components: the Vehicle Adapter, the Parking Pad, and the Control Panel. Charging begins automatically every time you park over the system — no dirty cords to untangle and no chance of forgetting to charge!
SPECIFICATIONS car insurance buy
COMPATIBILITY
Tesla Model S
CONTROL PANEL
Supplies power to the Parking Pad
Automatic Alignment Assist Guidance Display
High-visibility Charge Status Indicator
Height:
22.3 in (566 mm)
Width:
12 in (305 mm)
Depth:
5.2 in (132 mm)
PARKING PAD
Houses the transmitting portion of the system and is installed on the garage floor or parking space
Incredibly tough 1,500 lb per wheel maximum load
Height:
2.7 in (68.5 mm)
Width:
22 in (559 mm)
Depth:
18.5 in (470 mm)
ULTRA-SLIM VEHICLE ADAPTER
null

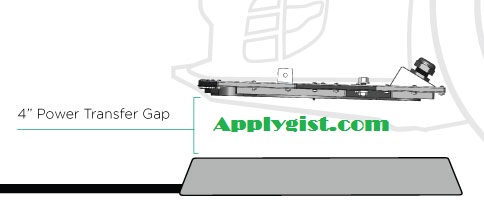

Nominal Gap:
4 in (10 cm)
Ground Clearance
7 in (17.8 cm)
Weight:
~35 lbs (12 kg)
Height:
1 in (25 mm)
Width:
33.5 in (838 mm)
Depth:
16 in (406 mm)
car insurance buy
DURABILITY
A MODEL S PLUS A GRAND PIANO? NO PROBLEM.
Parking Pad Maximum Wheel Load:
1500 lbs (680 kg) per wheel
WATCH THIS EV CHARGE IN 6″ OF SNOW
Operating Temperature Range
–22° to 122°F (–30° to 50°C)
SAFETY & RELIABILITY
car insurance buy
Vehicle Interface
J1772 EVSE emulation, interlocked to prevent the user attempting to charge the vehicle both inductively and conductively at the same time
Foreign Object Detection
Automatic detection and charging lockout if metallic materials on parking pad
Manufactured in the USA using recycled materials when possible
Standards
NEC 625 (NFPA 70), SAE J1772, UL2594, UL2231, CSA170.1
Enclosure Ratings
NEMA 3R (Control Panel); NEMA 4 (Parking Pad)
POWER car insurance buy
Charging Power Output
7.2kW continuous
Charging Input Voltage
208 – 240 VAC
car insurance buy
Input Power Connections
Line 1, Line 2, and Earth connection
Recommended Service Panel Breaker
Dedicated 50A, 2P breaker rated for continuous use
